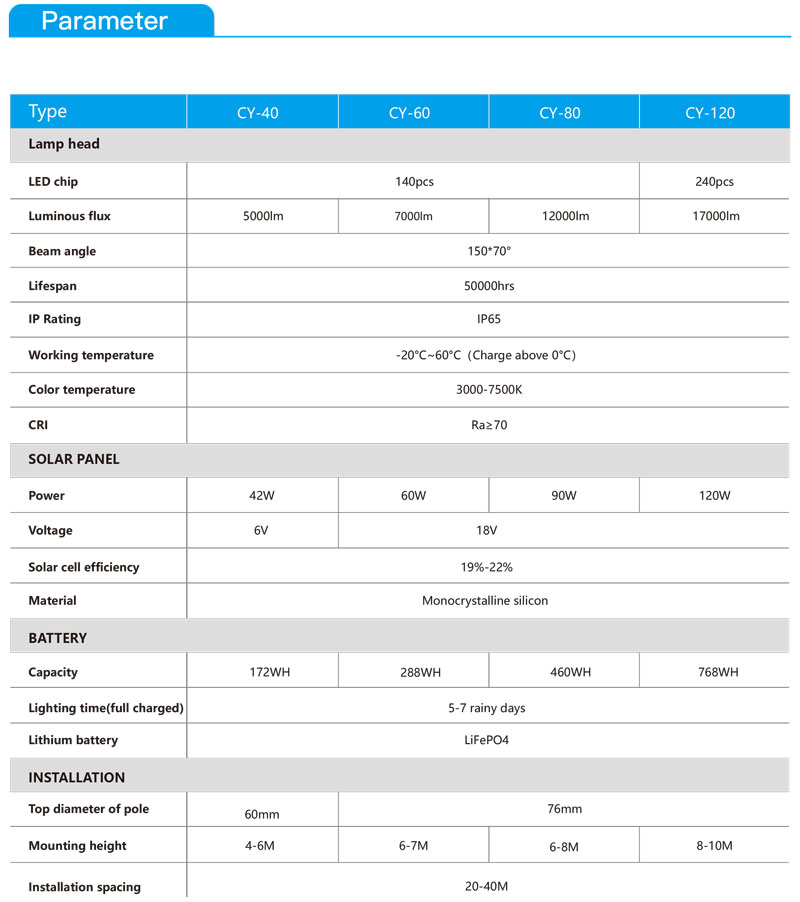

Light source: CREE LED *140pcs
Lumens: 5000LM
Solar Panel: 42W/6V
Battery: LiFePO4 batteries 172WH

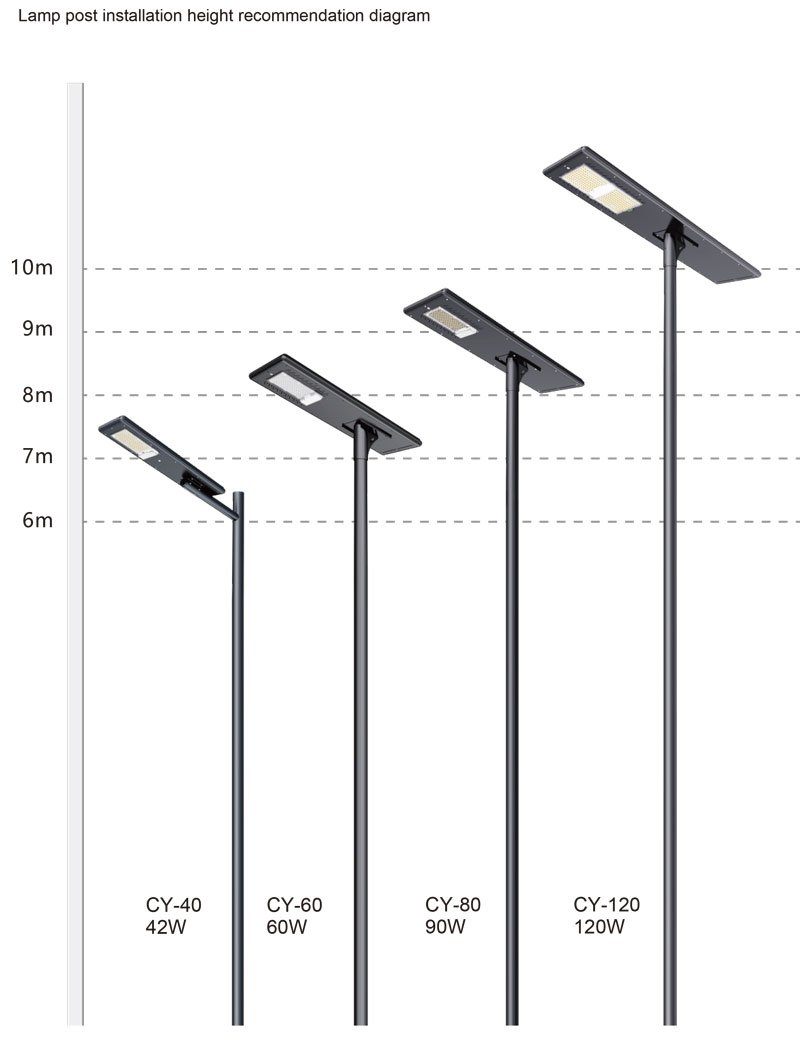

Mounting Height: 4~6M
Warranty:5 years
Product Description
Main Product Details:

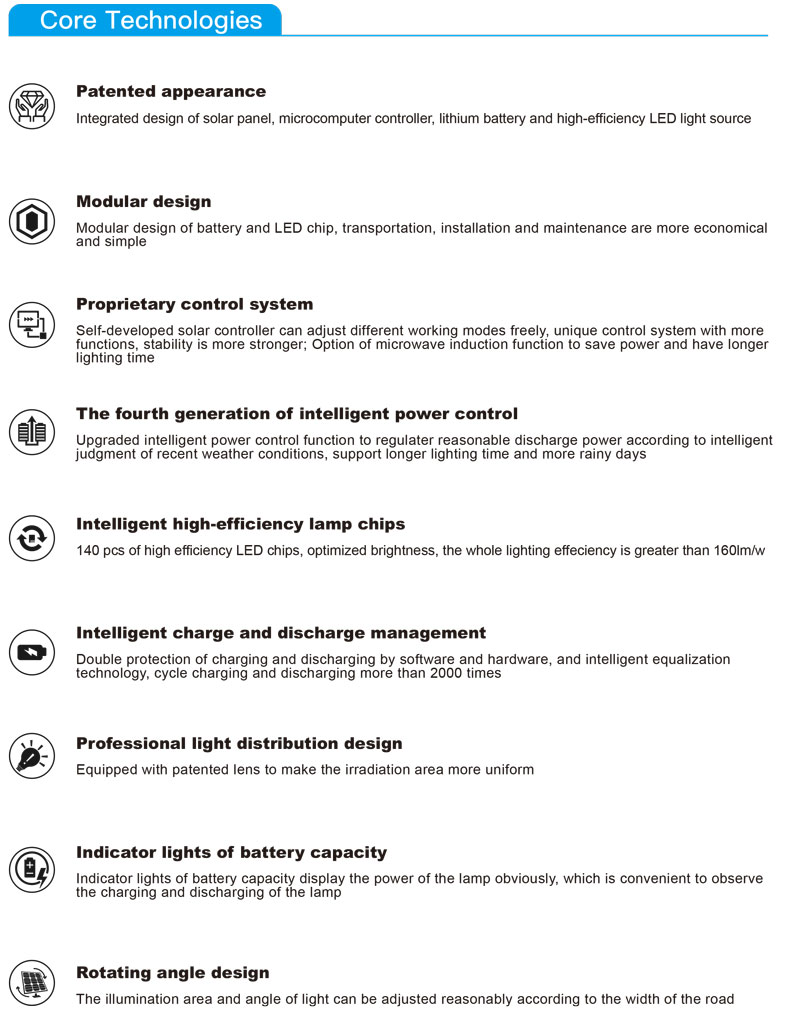

Core Technologies
Patented appearance

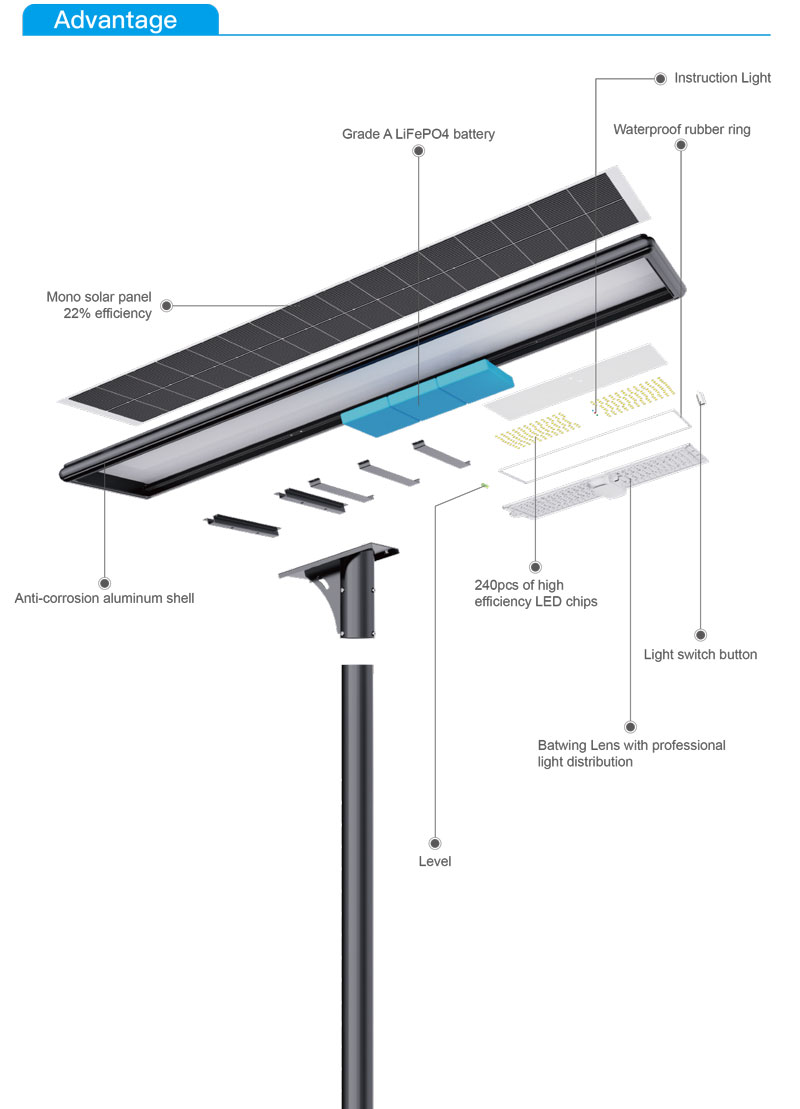

Integrated design of solar panel, microcomputer controller, lithium battery and high-efficiency LED light source

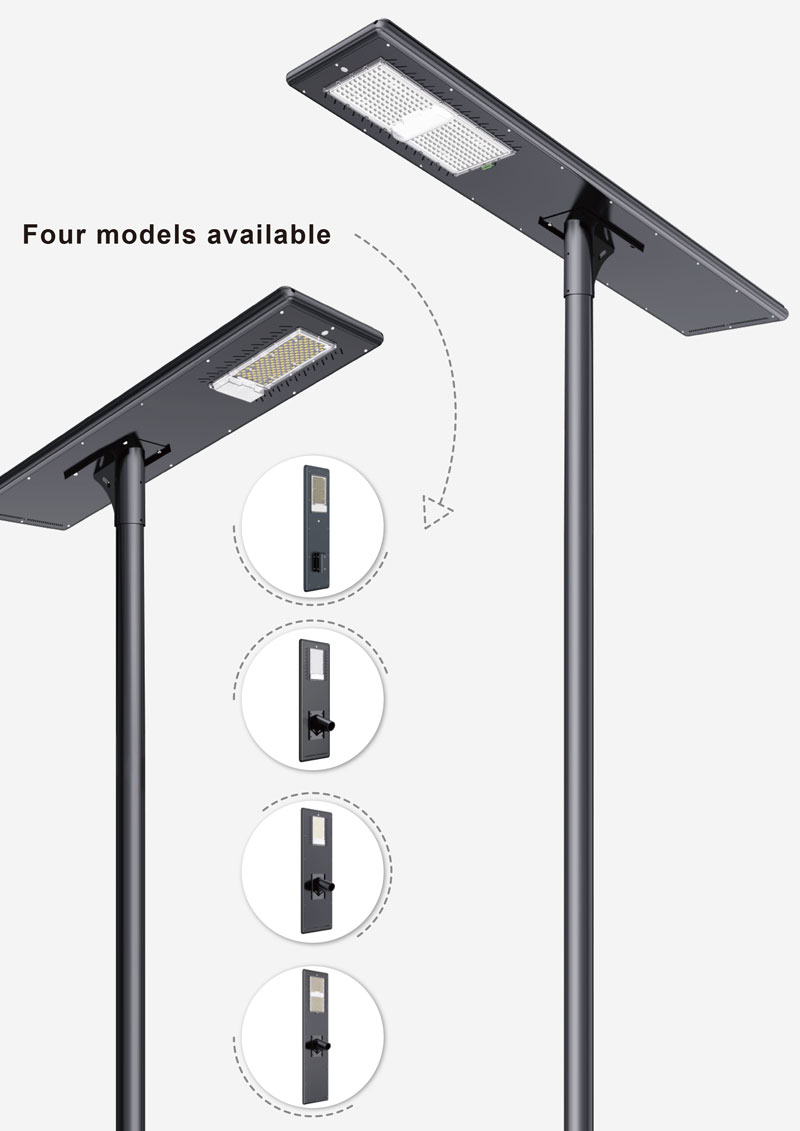

Modular design
Modular design of battery and LED chip, transportation, installation and maintenance are more economical and simple
Proprietary control system
Self-developed solar controller can adjust different working modes freely, unique control system with more functions, stability is more stronger; Option of microwave induction function to save power and have longer lighting time
The fourth generation of intelligent power control
Upgraded intelligent power control function to regulater reasonable discharge power according to intelligent judgment of recent weather conditions, support longer lighting time and more rainy days
Intelligent high-efficiency lamp chips
140 pcs of high efficiency LED chips, optimized brightness, the whole lighting effeciency is greater than 160lm/w
Intelligent charge and discharge management
Double protection of charging and discharging by software and hardware, and intelligent equalization technology, cycle charging and discharging more than 2000 times
Professional light distribution design
Equipped with patented lens to make the irradiation area more uniform

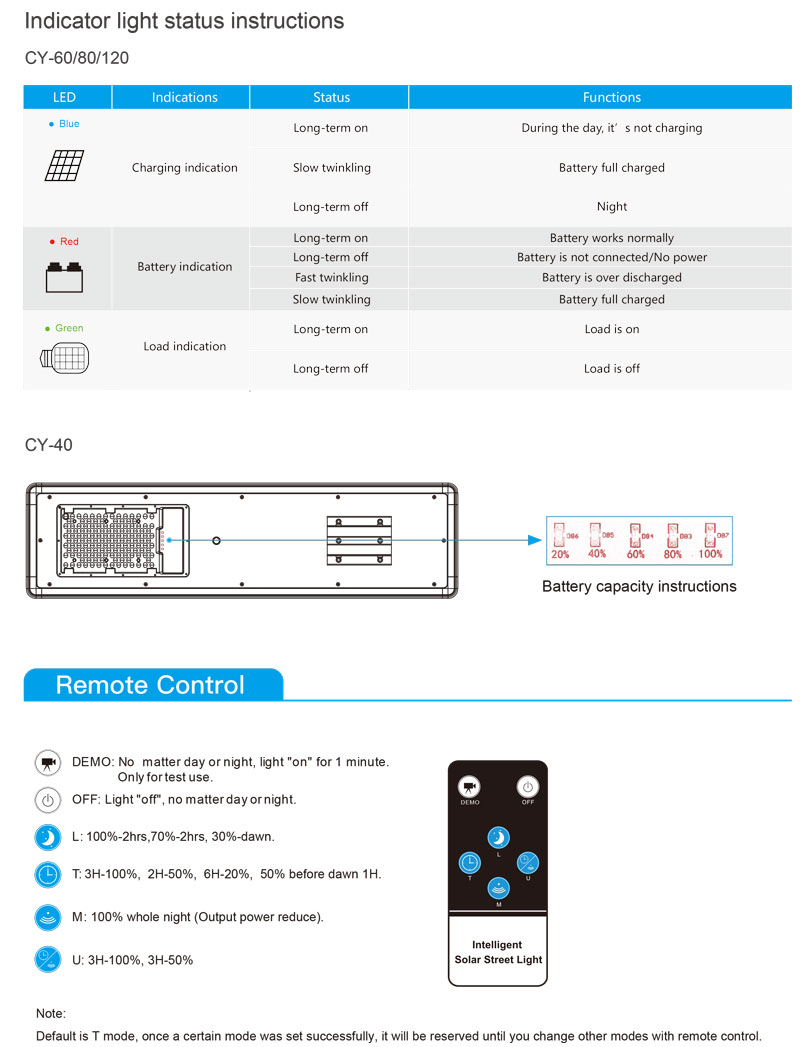

Indicator lights of battery capacity
Indicator lights of battery capacity display the power of the lamp obviously, which is convenient to observe the charging and discharging of the lamp
Rotating angle design
The illumination area and angle of light can be adjusted reasonably according to the width of the road
Smart Remote Controller:
DEMO:No matter day or night, light “on” for 1 minute.Only for test use.
OFF:Light “off”, no matter day or night.
L: 100%-2hrs,70%-2hrs, 30%-dawn.
T: 3H-100%, 2H-50%, 6H-20%, 50% before dawn 1H.
M: 100% whole night (Output power reduce).
U: 3H-100%, 3H-50%
Note:
Default is T mode, once a certain mode was set successfully, it will be reserved until you change other modes with remote control.
